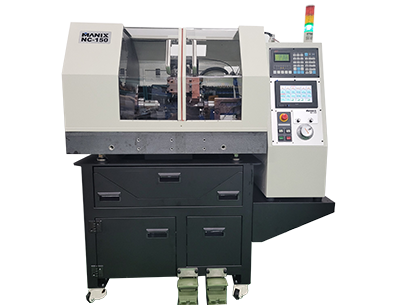

- Mine CNC LATHE
- This machine is a small CNC lathe machine based on industrial grade controller to process different types of materials including plastic and metal into small parts.

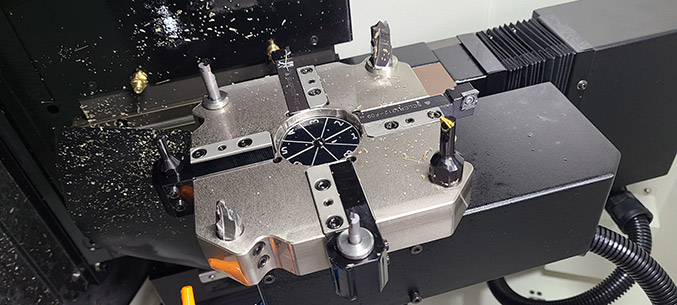

- Using small turret that is still able to mount 8 tools, this machine can process varied and complicated shapes that will be more efficient and cost-effective in education and small part production.
- Motion controller- and PC-controlled types

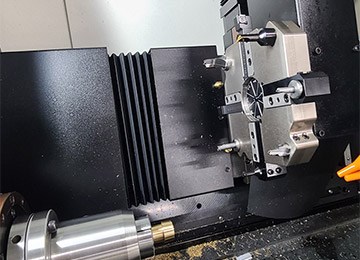

- Turret and tailstock for various kinds of machining works
- Economical performance and product customizing

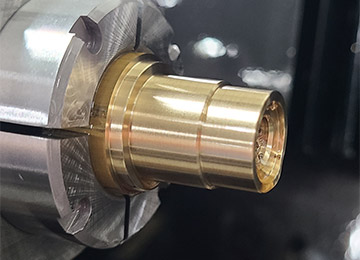

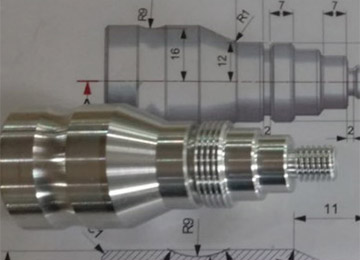

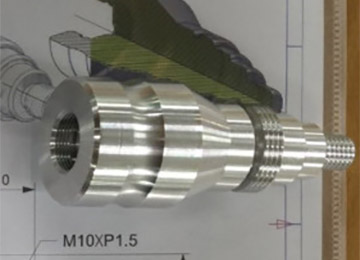

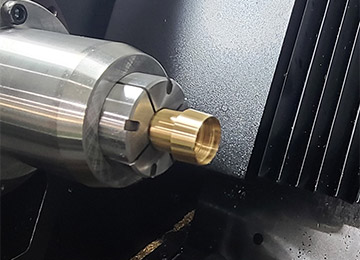

- Production of mini parts and automation
| Main shaft inner diameter | 25mm |
| Rotation diameter on the bed | 100mm |
| Distance between center | 300mm |
| Tail spindle taper | MT2 |
| Minimum feed distance | 0.001mm |
| Feed distance (X/Z) | 120/200mm |
| Rapid feed speed | 3000mm/min |
| Tailstock feed distance | 30mm |
| Main spindle motor | SERVO 0.75KW |
| Feed motor | SERVO 0.1KW |
| Main spindle speed | 0~3000RPM |
| Dimension | 1300x700x1500mm |
| Weight | About 350kg |
