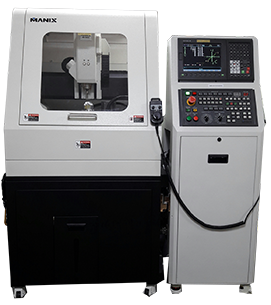

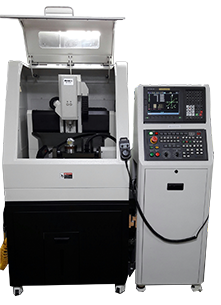

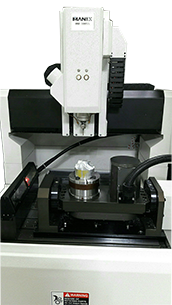

- CNC Engraving Machine

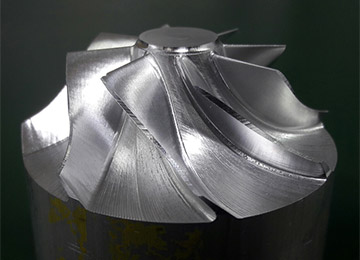

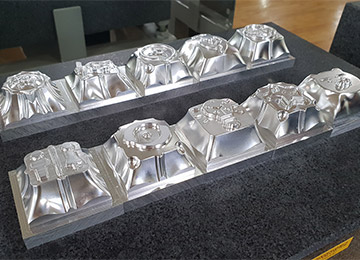

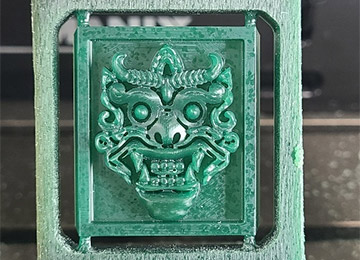

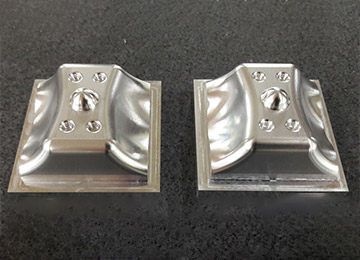

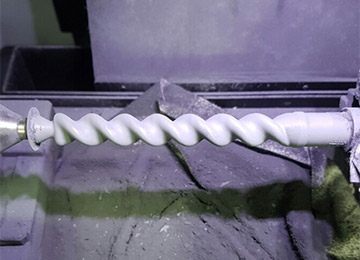

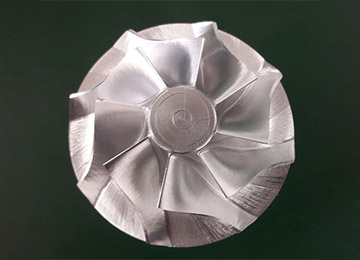

- This machine is a medium CNC milling device with industrial and PC based CNC controller equipped that can simultaneously control 4 axes, and suitable for machining aluminum, plastic, brass, and other non-high strength metal like free cutting steel.
- This machine has great compatibility with CAM software and supports NC(G-code) machining files.
- More efficient operation is possible by equipping ATC(Automatic Tool Change device) and index.
- This machine base structure is made from cast AL which has excellent strength and durability and is suitable for precision part machining.
| Controller | PC-NC / OP Panel |
| Machining range | 400 x 300 x 120mm (When using ATC:300 x 300 x 120mm) |
| Spindle Motor | High Frequency motor 1.1KW (When using ATC 0.75KW) |
| Spindle rotation speed | 8,000~ 20,000 rpm |
| ATC | Option |
| Feed motor | SERVO X,Y:0.1KW, Z:0.2KW |
| Feed devices | Precision ball screw, LM guide |
| Repetition degree | 0.01mm |
| Position degree | 0.01mm |
| Max feed speed | 6000mm/min |
| Power | Single phase 220V, 60Hz |
| Dimensions (L.W.H) | 1500 x 1100 x 1600mm |
| Weight | About 250 kg |
